tempalias.com – bookmarklet work

While the user experience on tempalias.com is already really streamlined, compared to other services that encode the expiration settings and sometimes even the target) into the email address (and are thus exploitable and in some cases requiring you to have an account with them), it loses in that, when you have to register on some site, you will have to open the tempalias.com website in its own window and then manually create the alias.

Wouldn’t it be nice if this worked without having to visit the site?

This video is showing how I want this to work and how the bookmarklet branch on the github project page is already working:

http://vimeo.com/moogaloop.swf?clip_id=11193192&server=vimeo.com&show_title=1&show_byline=0&show_portrait=0&color=00ADEF&fullscreen=1

The workflow will be that you create your first (and probably only) alias manually. In the confirmation screen, you will be presented with a bookmarklet that you can drag to your bookmark bar and that will generate more aliases like the one just generated. This works independently of cookies or user accounts, so it would even work across browsers if you are synchronizing bookmarks between machines.

The actual bookmarklet is just a very small stub that will contain all the configuration for alias creation (so the actual bookmarklet will be the minified version of this file here). The bookmarklet, when executed will add a script tag to the page that actually does the heavy lifting.

The script that’s running in the video above tries really hard to be a good citizen as it’s run in the context of a third party webpage beyond my control:

it doesn’t pollute the global namespace. It has to add one function, window.$__tempalias_com, so it doesn’t reload all the script if you click the bookmark button multiple times.
while it depends on jQuery (I’m not doing this in pure DOM), it tries really hard to be a good citizen:
- if jQuery 1.4.2 is already used on the site, it uses that.
- if any other jQuery version is installed, it loads 1.4.2 but restores window.jQuery to what it was before.
- if no jQuery is installed, it loads 1.4.2
- In all cases, it calls jQuery.noConflict if $ is bound to anything.
All DOM manipulation uses really unique class names and event namespaces

While implementing, I noticed that you can’t unbind live events with just their name, so $().die(‘.ta’) didn’t work an I had to provide all events I’m live-binding to. I’m using live here because the bubbling up delegation model works better in a case where there might be many matching elements on any particular page.

Now the next step will be to add some design to the whole thing and then it can go live.

tempalias.com – Public launch

After announcing tempalias.com here on my blog and sleeping over it, hoping the live server wouldn’t die over night, last friday I first implemented a garbage collection facility to prune expired aliases and then publicly announced tempalias.com on both Haker News and Reddit.

The echo was overall positive and in the first two hours after the announcment, I fixed a lot of small things based upon suggestions of people posting to my announcement:

I now serve a shortcut icon.
While I’m expiring aliases, I’m also making sure that once used aliases are never reused.
Node’s HTTP parser throws under some circumstances and it’s impossible to catch these errors which is why I had to greate a handler for the uncaughtException event as to keep the server up and running.

During the first day after its announcement, I had 4700 visits and in the second day it was still 1403 which might be some indication of the service being used by some people. As of right now, there are 652 valid aliases in redis.

During peak time, I got around 20 concurrent requests which the server handled easily (load of 0.01).

What was most interesting to me was that the announcement also generated quite a bit of traffic (3000 visits, so 75% conversion from the service to the blog which is nice) on this blog here and what I liked even more was the fact that the various entries in my development diary were read and sometimes commented upon which in turn lead to, drumroll please, 3 more twitter followers.

The project on github now has 22 watchers and on release day has seen 1496 page views according to their stats.

One question I was asked a lot is why I was writing an SMTP proxy instead of just hooking into an existing MTA. In retrospect, I was a bit unclear when I stated in the first entry of the diary:

Of course this old solution had one big problem: It required a mail server on the receiving end and it required you as a possible user to hook the script into that mailserver (also, I never managed to do just that with exim before losing interest, but by now, I would probably know how to do it).

My reasoning behind writing a proxy was the fact that I wanted you, my dear reader to fetch the source code and experiment with it or even host your own clone of tempalias.com. You should be able to do so with minimal effort, hence the solution should be as self-contained as possible without requiring a lot of infrastructure. Relying on a specific mail server would have severely limited the size of the audience, especially as the mail server I would have written the plugin for was to be Exim which isn’t that widely used these days.

Then, there’s another reason: As a long-time mail server administrator, I know that it is imperative to fork as little as possible during mail delivery. Hooking this into an existing mail server would have meant the server to fork for each incoming email, only to ultimately reject it in most of the cases as tempalias is much more about rejecting email than it is about delivering it.

No. Using the awesome performance of Node.js to reject tons and tons of email relying on any SMTP server as a smarthost only if needed felt more robust and easier to access for my readers. Hence I went the SMTP proxy route.

So. Am I happy with the launch?

Yes. I was able to make a service that is useful to some people. I was able to learn node.js from the inside out. I got to know some really bright developers in the process and I was able to contribute to open source projects.

On a personal level though, I would have hoped that spending 44 hours in developing an useful (and good looking) web service in a quite unknown but really sexy programming environment, documenting the steps in the process would have yielded a bit more social interaction with the community than a whole three twitter followers.

Maybe I should have stated my goal more clearly:

You should follow me on twitter here.

(this was a friendly nod to an article of the same name by Dustin Curtis, a person obviously way better in marketing than I will ever be)

Next time: Bookmarklet fun!

Announcing tempalias.com

Have you ever been in the situation where you had to provide a web service with an email address to get that confirmation email, full well knowing that you will not only get that, but also “important announcements” and “even more important product information”?

Wouldn’t it be nice if they could just send you the confirmation link but nothing more?

That’s possible now!

Head over to

tempalias.com

type the email address that should receive the confirmation mail, specify how many mails you want to receive and for how many days. Then hit the button and – boom – there’s your unique email address that you can provide to the service. Once the usage or time limit has been met, no more mail to that alias will be accepted.

tempalias.com is a fun-project of mine and also a learning experience. tempalias is written in node.js, a framework I had no prior experience with (but a whole lot of curiosity for). This is why I not only created the site, but I also documented my steps along the way. Here are the links to the various postings in chronological order (oldest first – I bolded the ones that contain useful information above just reporting on progress or bugs):

If you want to get in touch with me to report bugs, or ask questions, to rant or maybe to send a patch to, please send me an email to y8b3@tempalias.com – erm… no. just kidding (you can try sending an email there – it’s good for one day and one email – so good luck). Send it to pilif@gnegg.ch or contact me on twitter @pilif.

tempalias.com – debriefing

This is the last part of the development diary I was keeping about the creation of a new web service in node.js. You can read the previous installment here.

It’s done.

The layout is finished, the last edges too rough for pushing the thing live are smoothed. tempalias.com is live. After coming really close to finishing the thing yesterday (hence the lack of a posting here – I was too tired when I had to quit at 2:30am) last night, now I could complete the results page and add the needed finishing touches (like a really cool way of catching enter to proceed from the first to the last form field – my favorite hidden feature).

I guess it’s time for a little debriefing:

All in all, the project took a time span of 17 days to implement from start to finish. I did this after work and mostly during weekdays and sundays, so it’s actually 11 days in which work was going on (I also was sick two days). Each day I worked around 4 hours, so all in all, this took around 44 hours to implement.

A significant part of this time went into modifications of third party libraries, while I tried to contact the initial authors to get my changes merged upstream:

The author of node-smtp isn’t interested in the SMTP daemon functionality (that wasn’t there when I started and is now completed)
The author of redis-node-client didn’t like my patch, but we had a really fruitful discussion and node-redis-client got a lot better at handling dropped connection in the process.
The author of node-paperboy has merged my patch for a nasty issue and even tweeted about it (THANKS!)

Before I continue, I want to say a huge thanks to fictorial on github for the awesome discussion I was allowed to have with him about node-redis-client’s handling of dropped connections. I’ve enjoyed every word I was typing and reading.

But back to the project.

Non-third-party code consists of just 1624 lines of code (using wc -l, so not an accurate measurement). This doesn’t factor in the huge amount of changes I made to my fork of node-smtp the daemon part of which was basically non-existant.

Overall, the learnings I made:

git and github are awesome. I knew that beforehand, but this just cemented my opinion
node.js and friends are still in their infancy. While node removes previously published API on a nearly daily basis (it’s mostly bug-free though), none of the third-party libraries I am using were sufficiently bug-free to use them without change.
Asynchronous programming can be fun if you have closures at your disposal
Asynchronous programming can be difficult once the nesting gets deep enough
Making any variable not declared with var global is the worst design decision I have ever seen in my life especially in node where we are adding concurrency to the mix)
While it’s possible (and IMHO preferrable) to have a website done in just RESTful webservices and static/javascript frontend, sometimes just a tiny little bit of HTML generation could be useful. Still. Everything works without emitting even a single line of dynamically generated HTML code.
Node is crazy fast.

Also, I want to take the opportunity and say huge thanks to:

the guys behind node.js. I would have had to do this in PHP or even rails (which is even less fitting than PHP as it provides so much functionality around generating dynamic HTML and so little around pure JSON based web services) without you guys!
Richard for his awesome layout
fictorial for redis-node-client and for the awesome discussion I was having with him.
kennethkalmer for his work on node-smtp even though it was still incomplete – you lead me on the right tracks how to write an SMTP daemon. Thank you!
@felixge for node-paperboy – static file serving done right
The guys behind sammy – writing fully JS based AJAX apps has never been easier and more fun.

Thank you all!

The next step will be marketing: Seing this is built on node.js and an actually usable project – way beyond the usual little experiments, I hope to gather some interest in the Hacker community. Seing it also provides a real-world use, I’ll even go and try to submit news about the project on more general outlets. And of course on the Security Now! feedback page as this is inspired by their episode 242.

tempalias.com – learning CSS

This is one more episode in the development diary outlining the creation of a node.js based web service. You can read the previous installment here.

Today I could finally start with creating the HTML and CSS that will become the web frontend of the tempalias.com site. On Sunday, when I initially wanted to start, I was hindered by strangeness and overengineering of the express framework and yesterday it was general breakage in the redis client library for node.

But today I had no excuse and I started doing the HTML and CSS work with the intention of converting Richard’s awesome Photoshop designs into real-world HTML.

My main issue with this task: I plain don’t know CSS. Of course I know the syntax and how it should work in general, but there’s a huge difference between being able to read the syntax and writing basic code and actually being able to understand all the minor details and tricks that make it possible to achieve what you want in a reasonable time frame.

In contrast to real programming languages where you are usually developing for one target (sure – there might be plattform differences, but even nowaways, while learning, you can get away with restricting yourself to one plattform), HTML and CSS provide the additional difficulty that you have to develop for multiple moving targets, all of which containing different subtle bugs.

Combine that with the fact that more than basic CSS definitely isn’t part of my daily work and you’ll understand why I was struggling.

In the end I seem to have gotten into the thinking that’s needed to make elements appear in the general vicinity of where you suppose they should end up. I even got used to the IMHO very non-intuitive way of having margin and border be part of the elements dimensions in addition to their padding so all the pixel calculations fell into place and the whole thing looks more or less acceptable.

Until you begin changing the text size of course. But there’s so much manual pixel painting involved in the various backgrounds (gradient support isn’t quite there yet – even in browsers) that it’s probably impossible to create a really well-scaling layout anyways, so what I currently have is what I’m content with.

You want to have a peek?

I didn’t upload anything to the public site yet because there’s no functionality and I wouldn’t want to confuse users reaching the site by accident, so a screenshot will have to do. Or you clone my repository on github and run it yourself.

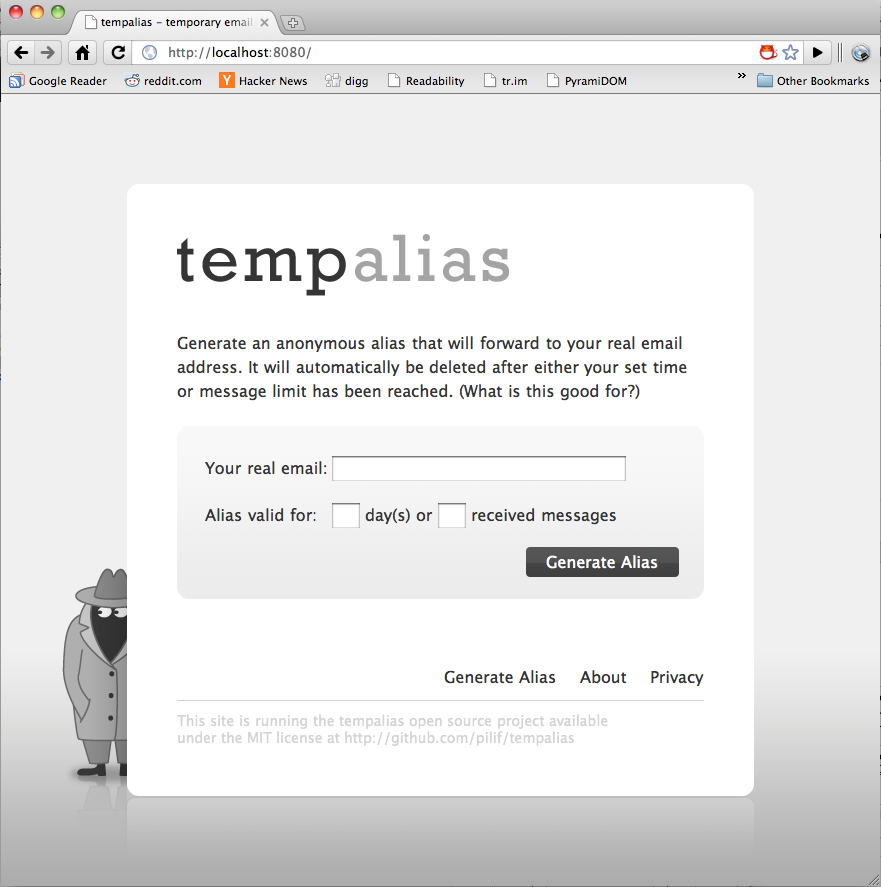

Here it is:

The really tricky thing and conversely the thing I’m really the most proud of is the alignment of both the spy and the reflection of the main page content. You witness some really creative margin- and background positioning at work there. Oh. And I just don’t want to know in what glorious ways the non-browser IE butchers this layout.

I. just. plain. don’t. care. This is supposed to be a FUNproject.

Tomorrow: Hooking in Sammy to add links to all the static pages.

It looks now as if we are going live this week :-)

tempalias.com – sysadmin work

This is yet another episode in the development diary behind the creation of a new web service. Read the previous installment here.

Now that I made the SMTP proxy do its thing and that I’m able to serve out static files, I though it was time to actually set up the future production environment so that I can give it some more real-world testing and to check the general stability of the solution when exposed to the internet.

So I went ahead and set up a new VM using Ubuntu Lucid beta, running the latest (HEAD) redis and node and finally made it run the tempalias daemons (which I consolidated into one opening SMTP and HTTP ports at the same time for easier handling).

I always knew that deployment will be something of a problem to tackle. SMTP needs to run on port 25 (if you intend to be running on the machine listed as MX) and HTTP should run on port 80.

Both being sub 1024 in consequence require root privileges to listen on and I definitely didn’t want to run the first ever node.js code I’ve written to run with root privileges (even though it’s a VM – I don’t like to hand out free root on a machine that’s connected to the internet).

So additional infrastructure was needed and here’s what I came up with:

The tempalias web server listens only on localhost on port 8080. A reverse nginx proxy listens on public port 80 and forwards the requests (all of them – node is easily fast enough to serve the static content). This solves another issue I had which is HTTP content compression: Providing compression (Content-Encoding: gzip) is imperative these days and yet not something I want to implement myself in my web application server.

Having the reverse proxy is a tremendous help as it can handle the more advanced webserver tasks – like compression.

I quickly noticed though that the stable nginx release provided with Ubuntu Lucid didn’t seem to be willing to actually do the compression despite it being turned on. A bit of experimentation revealed that stable nginx, when comparing content-types for gzip_types checks the full response content-type including the charset header.

As node-paperboy adds the “;charset: UTF-8” to all requests it serves, the default setting didn’t compress. Thankfully though, nginx could live with

gzip_types "text/javascript; charset: UTF-8" "text/html; charset: UTF-8"

so that settled the compression issue.

Update: of course it should be “charset=UTF-8” instread of “charset: UTF-8” – with the equal sign, nginx actually compresses correctly. My patch to paperboy has since been accepted by upstream, so you won’t have to deal with this hassle.

Next was SMTP. As we are already an SMTP proxy and there are no further advantages of having incoming connections proxied further (no compression or anything), I wanted clients to somehow directly connect to the node daemon.

I quickly learned that even the most awesome iptables setup won’t make the Linux kernel accept on the lo interface anything that didn’t originate from lo, so no amount of NATing allows you to redirect a packet from a public interface to the local interface.

Hence I went by reconfiguring the SMTP server component of tempalias to listen on all interfaces, port 2525 and then redirect the port of packets on the public port from 25 to 2525.

This of course left the port 2525 open on the public interface which I don’t like.

A quickly created iptables rule rejecting (as opposed to dropping – I don’t want a casual port scanner to know that iptables magic is going on) any traffic going to 2525 also dropped the redirected traffic which of course wasn’t much help.

In comes the MARK extension. Here’s what I’ve done:

# mark packets going to port 25
iptables -t mangle -A PREROUTING -i eth0 -p tcp --dport 25 -j MARK --set-mark 99

# redirect packets going to port 25 to 2525
iptables -t nat -A PREROUTING -p tcp -i eth0 --dport 25 -j REDIRECT --to-ports 2525

# drop all incoming packets to 2525 which are not marked
iptables -A INPUT -i eth0 -p tcp --dport 2525 -m mark ! --mark 99 -j REJECT

So. Now the host responds on public port 25 (but not on public port 2525).

Next step was to configure DNS and tell Richard to create himself an alias using

curl --no-keepalive -H "Content-Type: application/json"
     --data-binary '{"target":"t@example.com","days": 3,"max-usage": 5}'
     -qsS http://tempalias.com/aliases

(yes. you too can do that right now – it’s live baby!)

Of course it blew up the moment the redis connection timed out, taking the whole node server with it.

Which was the topic of yesterdays coding session: The redis-node-client library is very brittle what connection tracking and keeping is concerned. I needed something quick, so I hacked the library to provide an additional very explicit connection management method.

Then I began discussing the issues I was having with redis-node-client’s author. He’s such a nice guy and we had one hell of a nice discussion which is still ongoing, so I will probably have to rewrite the backend code once more once we found out how to do this the right way.

Between all that sysadmin and library-fixing time, unfortunately, I didn’t yet have time to do all too much on the public facing website: http://tempalias.com at this point contains nothing but a gradient. But it’s a really nice gradient. One of the best.

Today: More redis-node-client hacking (provided I get another answer from fictorial) or finally some real HTML/CSS work (which I’m not looking forward to).

This is taking shape.

tempalias.com – rewrites

This is yet another installment in my series of posts about building a web service in node.js. The previous post is here.

Between the last post and current trunk of tempalias, there lie two substantial rewrites of core components of the service. One thing is that I completely misused Object.create() which takes an object to be the prototype of the object you are creating. I was of the wrong opinion that it works like Crockford’s object.create() which is creating a clone of the object you are passing.

Also, I learned that only Function objects actually have a prototype.

Not knowing these two things made it impossible to actually deserialize the JSON representation of an alias that was previously stored in redis. This lead to the first rewrite – this time of lib/tempalias.js. Now aliases work more like standard JS objects and require to be instantiated using the new operator, on the plus side though, they work as expected now.

Speaking of serialization. I learned that in V8 (and Safari)

isNan(Date.parse( (new Date()).toJSON() )) === true

which, according to the ES5 spec is a bug. The spec states that Date.parse() should be able to parse a string created by Date.doISOStirng() which is what is used by toJSON.

This ended up with me doing an ugly hack (string replacement) and reporting a bug in Chrome (where the bug happens too).

Anyhow. Friday and Saturday I took off the project, but today I was on it again. This time, I was looking into serving static content. This is how we are going to serve the web site after all.

Express does provide a Static plugin, but it’s fairly limited in that it doesn’t do any client side caching which, even though Node.js is crazy fast, seems imperative to me. Also while allowing you to configure the file system path it should serve static content from, it insists on the static content’s URL being /public/whatever, where I would much rather have kept the URL-Space together.

I tried to add If-Modified-Since-support to express’ static plugin, but I hit some strange interraction in how express handles the HTTP request that caused some connections to never close – not what I want.

After two hours of investigating, I was looking at a different solution, which leads us to rewrite two:

tempalias trunk now doesn’t depend on express any more. Instead, it serves the web service part of the URL space manually and for all the static requests, it uses node-paperboy. paperboy doesn’t try to convert node into Rails and it provides nothing but a simple static file handler for your web server which also works completely inside node’s standard method for handling web requests.

I prefer this solution by much because express was doing too much in some cases and too little in others: Express tries to somewhat imitate rails or any other web framework in that it not only provides request routing but also template rendering (in HAML and friends). It also abstracts away node’s HTTP server module and it does so badly as eveidenced by this strange connection not-quite-ending problem.

On the other hand, it doesn’t provide any help if you want to write something that doesn’t return text/html.

Personally, if I’m doing a RESTful service anyways, I see no point in doing any server-side HTML generation. I’d much rather write a service that exposes an API at some URL endpoints and then also a static page that uses JavaScript / AJAX to consume said API. This is where express provides next to no help at all.

So if the question is whether to have a huge dependency which fails at some key points and doesn’t provide any help with other key points or to have a smaller dependency that handles the stuff I’m not interested in, but otherwise doesn’t interfer, I’d much prefer that solution to the first one.

This is why I went with this second rewrite.

Because I was already using a clean MVC separation (the “view” being the JSON I emit in the API – there’s no view in the traditional sense yet), the rewrite was quite hassle-free and basically nothing but syntax work.

After completing that, I felt like removing the known issues from my blog post where I was writing about persistence: Alias generation is now race-free and alias length is stored in redis too. The architecture can still be improved in that I’m currently doing two requests to Redis per ALIAS I’m creating (SETNX and SET). By moving stuff around a little bit, I can get away with just the SETNX.

On the other hand, let me show you this picture here:

Considering that the current solution is already creating 1546 aliases per second at a concurrency of 100 requests, I can probably get away without changing the alias creation code any more.

And in case you ask: The static content is served with 3000 requests per second – again with a concurrency of 100.

Node is fast.

Really.

Tomorrow: Philip learns CSS – I’m already dreading this final step to enlightenment: Creating the HTML/CSS front-end UI according to the awesome design provided by Richard.

tempalias.com – the cake is a lie

This is another installment of my development diary for tempalias.com, a web service that will allow you to create self-destructing email aliases. You can read the last previous here.

This was a triumph.
I’m making a note here: HUGE SUCCESS.
It’s hard to overstate my satisfaction.

I didn’t post an update on wednesday evening because it got very late and I just wanted to sleep. Today, it’s late yet again, but I can gladly report that the backend service is now feature complete.

We are still missing the UI, but with a bit of curl on the command line, you can use the restful web service interface to create aliases and you can use the generated aliases to send email via the now completed SMTP proxy – including time and usage based expiration.

As a reminder: All the code (i.e. the completed backend) is available on my github repository, though keep in mind that there is no documentation what so ever. That I will save for later when this is really going public. If you are brave, feel free to clone it.

You will need the trunk versions for both redis and node.

The screenshot is is showing me consuming an alias four times in a row. Three times, I get the data back, the fourth time, it’s gone.

The website itself is still in the process of being designed and I can promise you, it will be awesome. Richard’s last design was simply mind-blowing. Unfortunately I can’t show it here yet, because he used a non-free picture. Besides, we obviously can’t use non-free artwork for a Free Software project.

So this update concerns itself with two days of work. What was going on?

On wednesday, I wanted to complete the SMTP server, but before I went ahead doing so, I revised the servers design. At the end of the last posting here, we had a design where the SMTP proxy would connect to the smarthost the moment a client connects. It would then proceed to proxy through command by command, returning error messages as they are returned by the smarthost.

The issue with this design lies in the fact that tempalias.com is, by definition, not about sending mail, but about rejecting mail. This means that once it’s up and running, the majority of mail deliveries will simply fail at the RCPT state.

From this perspective, it doesn’t make sense to connect to the smarthost when a client connects. Instead, we should do the handshake up to and including the RCPT TO command, at which time we do the alias expansion. If that fails (which is the more likely case), we don’t need to bother to connect to upstream but we can simply deny the recipient.

The consequence of course is that our RCPT TO can now return errors that happened during MAIL FROM on the upstream server. But as MAIL FROM usually only fails with a 5xx error, this isn’t terribly wrong anyways – the saved resources far outweigh the not-so-perfect error messages.

Once I completed that design change, the next roadblock I went into was the fact that both the smtp server and the smtp client libraries weren’t quite as asynchronous as I would have wanted: The server was reading the complete mail from the client into memory and the client wanted the complete mail as a parameter to its data method.

That felt unpractical to me as in the majority of cases, we won’t get the whole mail at once, but we can certainly already begin to push it through to the smarthost, keeping memory usage of our smtp server as low as possible.

So my clone of the node SMTP library now contains support for asynchronous handling for DATA. The server fires data, data_available and data_end and the client provides startData(), sendData() and endData(). Of course the old functionality is still available, but the tempalias.com SMTP server is using the new interface.

So, that was Wednesday’s work:

only connect to the smarthost when it’s no longer inevitable
complete the smtp server node library
made the smtp server and client libraries fully asynchronous
complete the SMTP proxy (but without alias expansion yet)

Before I went to bed, the SMTP server was accepting mail and sending it using the smarthost. It didn’t do alias expansion yet but just rewrote the recipient to my private email address.

This is where I picked up Thursday night: The plan was to hook the alias model classes into the SMTP server as to complete the functionality.

While doing that, I had one more architectural thing to clear: How to make sure that I can decrement the usage-counter race-free? Once that was settled, the rest was pure grunt work by just writing the needed code.

As we are getting long and as it’s quite late again, I’m saving the post-mortem of this last task for tomorrow. You’ll get a chance learn about bugs in node, about redis’ DECR command and finally you will get a chance to laugh at me for totally screwing up the usage of Object.create().

Stay tuned.

tempalias.com – config file, SMTP cleanup, beginnings of a server

Welcome to the next installment of a series of blog posts about the creation of a new web service in node.js. The posts serve as a diary of how the development of the service proceeds and should give you some insight in how working with node.js feels right now. You can read the previous episode here.

Yesterday, I unfortunately didn’t have a lot of time to commit to the project, so I chose a really small task to complete: create a configuration file, a configuration file parser and use both to actually configure how the application should behave.

The task in general was made a lot easier by the fact that (current) node contains a really simple parser for INI style configuration files. For the simple type of configuration data I have to handle, the INI format felt perfect and as I got a free parser with node itself, that’s what I went with. So as of monday it’s possible to configure listening addresses and ports for both HTTP and SMTP daemons and additional settings for the SMTP part of the service.

Today I had more time.

The idea was to seriously look into the SMTP transmission. The general idea is that email sent to the tempalias.com domain will have to end up on the node server where the alias expansion is done and the email is prepared for final delivery.

While I strive to keep the service as self-contained as possible, I opted into forcing a smarthost to be present to do the actual mail delivery.

You see, mail delivery is a complicated task in general as you must deliver the mail and if you can’t, you have to notify the sender. Reasons for a failing delivery can be permanent (that’s easy – you just tell the sending server that there was a problem and you are done) or temporary. In case of many temporary errors you end up with the responsibility of needing to handle them.

Handling in case of temporary errors usually means: Keep the original email around in a queue and retry after the initial client has long disconnected. If you don’t succeed for a reasonably large amount of delivery attempts or if a permanent problem creeps up, then you have to bounce the message back to the initial sender.

If you want to do the final email delivery, so that your app runs without any other dependencies, then you will end up not only writing an SMTP server but also a queueing system, something that’s way beyond the scope of simple alias resolution.

Even if I wanted to go through that hassle, it still wouldn’t help much as aside of the purely technical hurdles, there are also others on a more meta level:

If you intend to do the final delivery nowadays, you practically need to have a valid PTR record, you need to be in good standing with the various RBL’s, you need to handle SSL – the list goes on and on. Much of this is administrative in nature and might even create additional cost and is completely pointless considering the fact that you do usually have a dedicated smarthost around that takes your mail and does the final delivery. And even if you don’t: Installing a local MTA for the queue handling is easily done and whatever you install, it’ll be way more mature than what I could write in any reasonable amount of time.

So it’s decided: The tempalias codebase will require a smarthost to be configured. As mine doesn’t require authentication from a certain IP range, I can even get away without writing any SMTP authentication support.

Once that was clear, the next design decision was clear too: the tempalias smtp daemon should be a really, really thin layer around the smarthost. When a client connects to tempalias, we will connect to the smarthost (500ing (or maybe 400ing) out if we can’t – remember: immediate and permanent errors are easy to handle). When a client sends MAIL FROM, just relay it to the smarthost, returning back to the client whatever we got – you get the idea: the tempalias mail daemon is an SMTP proxy.

This keeps the complexity low while still providing all the functionality we need (i.e. rewriting RCPT TO).

Once all of this was clear, I sat down and had a look at the node-smtp servers and clients and it was immediately clear that both need a lot of work to even to the simple thing I had in mind.

This means that most of todays work went into my fork of node-smtp:

made the hostname in the banner configurable
made the smtp client library work with node trunk
fire additional events (on close, on mail from, on rcpt to)
fixed various smaller bugs

Of course I have notified upstream of my changes – we’ll see what they think about.

On the other hand, the SMTP server part of tempalias (incidentally the first SMTP server I’m writing. ever) also took shape somewhat. It now correctly handles proxying from initial connection up until DATA. It doesn’t do real alias expansion yet, but that’s just a matter of hooking it into the backend model class I already have – for now I’m happy with it rewriting all passed recipients to my own email address for testing.

I already had a look at how node-smtp’s daemon handles the DATA command and I have to say that gobbling up data into memory until the client stops sending data or we run out of heap isn’t quite what I need, so tomorrow I will have to change node-smtp even more in that it fires events for every bit of data that was received. That way a consumer of the API can do some validation on the various chunks (mostly size validation) and I can pass the data directly to the smarthost as it arrives.

This keeps memory usage of the node server small.

So that’s what I’m going to do tomorrow.

On a different note, I had some thought going into actual deployment, which probably will end up with me setting up a reverse proxy after all, but this is a topic for another discussion.

tempalias.com – SMTP and design

After being sick the end of last week, only today I found time and willpower to continue working on this little project of mine.

For people just coming to the series with this article: This is a development diary about the creation of a web service for autodestructing email addresses. Read the previous installment here.

The funny thing about the projcet is that people all around me seem to like the general idea behind the service. I even got some approval from Ebi (who generally dislikes everything that’s new) and this evening I was having dinner with a former coworker of mine whom I know for doing kick-ass web design.

He too liked the idea of the project and I could con him into creating the screen design of tempalias.com. This is a really good thing as whatever Richard touches comes out beautiful and usable.

For example, he told me that it makes way more sense to just expose a valid until date and in the form of “Valid for x days” instead of asking the user to provide a real date. This is not only much clearer and easier to use, it also fixes a brewing timezone problem I had with my previous design:

Valid for “3 days from now” is 3 days from now wherever on the world you are. But valid until 2010-04-16 is different depending on where you are.

This is a rare case of where adding usability also keeps the code simpler.

So, this is what Richard came up with so far:

It’s not finalized yet, but in the spirit of publishing here early and often, I’m posting this now. It’s actually the third iteration already and Richard is still working on making it even nicer. But it’s already 2124 times better than what I could ever come up with.

On the code-front, I was looking into the SMTP server, where I found @kennethkalmer’s node-smtp project which provides a very rough implementation of an SMTP daemon.

Unfortunately, it doesn’t run under node trunk (or even 0.1.30), but with the power of github, I was able to create my own fork at

http://github.com/pilif/node-smtp

My fork contains a bit of additional code compared to the source:

Runs under node trunk (where trunk is defined as “node as it was last tuesday”)
Enforces proper SMTP protocol sequence (first: HELO, then MAIL FROM, then RCPT TO and finally DATA)
Supports multiple recipients (by handling multiple RCPT TO)
Does some email address validation (which is way too strict for being RFC compliant)

Tomorrow, I’m going to use this fork to build an SMTP server that we’ll be using for alias processing, where I will have to put some thought into actual mail delivery: Do I deliver the mail myself? Am I offloading it to a mail relay (I really want to do this. But read more tomorrow)? If so, how is this done with the most memory efficiency?

We’ll see.
